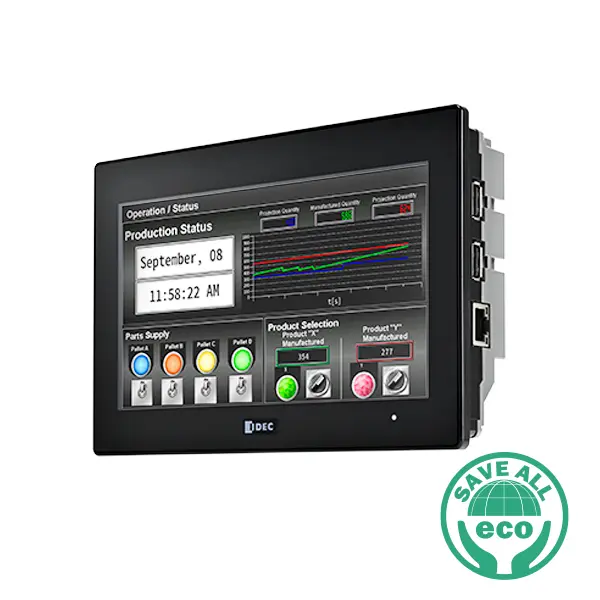

The IDEC FT2J Series PLC controller with a 7″ high resolution operator interface (HMI) display and expandable I/O is the leading all-in-one choice for a wide variety of industries and applications. With Class I Div 2 approval ratings, this unit ensures reliability and durability in the harshest environments and is backed by an industry-leading 3-year warranty.
Key Features
- Compact 7″ PLC+HMI
- 22 I/O (14 in/8 out) Points
- -20° to +55°C Operating Temp.
- 800 x 400 Pixel Display Resolution
- PCAP Glass Top HMI Design
- Embedded RJ45 Ethernet Port
- Built-in Analog Inputs
- PID and PWM Controls
- Remote Access, FTP, Email, Mobile App and Custom Web Page
Benefits
- Compact Design: With integrated control and display in a single housing, this unit features a space-saving design that takes up only 1/3 of the space of individual units.
- Large Display: With a significantly reduced bezel width, this high resolution 7″ display can replace an existing 5.7″ display, delivering the greatest amount of display area in the smallest possible footprint.
- Clear and Functional Display: The FT2J features a protective glass PCAP touchscreen that is resistant to scratches, water, oil, and dirt, providing high visibility, durability, and functionality.
- Seamless Communication and IoT Compatibility: Communication interfaces such as RS232C, RS422/485, Ethernet, and USB-A ports and a wide range of IoT functionalities enable easy connection and seamless integration to various external devices.
- Time-Saving: Communication and configuration parameters are already set and no connections are required to be made between the PLC and HMI.
- Energy-Saving: Compared to separate equivalent units, the FT2J consumes approximately 40% less energy and both the PLC and HMI are powered by a single power source.
- Wide Range of Control Functions:
- Dual CPU configuration for high-speed processing
- Expansion cartridge with flexible I/O expandability for easy updates to inputs and outputs
- Analog I/O allows for easy configuration of analog settings
- High-speed counter capable of counting high-speed pulses
- PID algorithm with cascade control is available for applications that require temperature, flow, or pressure control.
- OI and ladder programming in a single software:
- Simultaneous view of OI and ladder programs
- User communication function supports custom protocols
- The error log helps to identify problems in a project
- Script function enables easy programming of complex processes
- Extensive image library
- Data Copy setting allows for time-saving batch copying
The IDEC FT2J all-in-one PLC + HMI is ideal for OEMs of small equipment used in packaging, test equipment, pump control, process skids, refrigeration, etc. in the Food & Bev, Agricultural, Water/Wastewater, HVAC, and Oil & Gas industries.
